Pipe bursting technique in Bad Hall

Year of installation: 2014
Material: Sureline with protective layer (PE-100-RC + PP-R)
Dimension: OD 110 mm SDR11
Medium: potable water
Temperature: 10 °C

Sureline pipes for a water main line

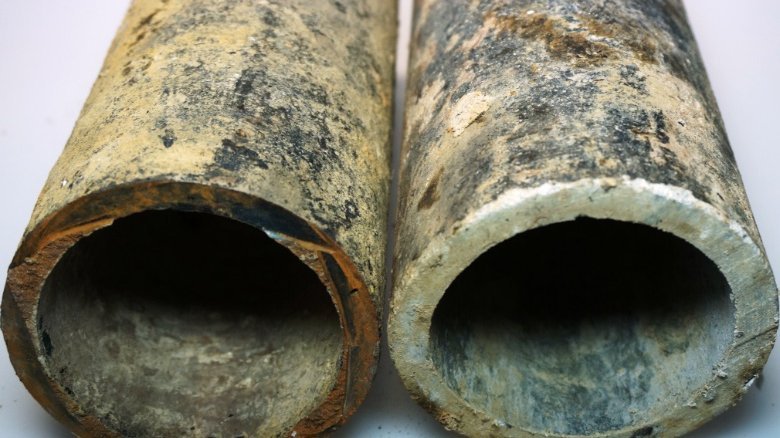

In summer 2014 the main water pipeline in the Grünburger Street in Bad Hall was replaced using a trenchless installation technology. The existing pipeline made of steel or asbestos cement became leaky and incrusted over the years.

To ensure a good quality of water, the existing pipes were replaced with a polyethylene (PE) pipe. Pipes made of PE are physiologically safe, flexible and the forming of deposits in the pipe is highly unlikely.

For the installation the Sureline with protective layer pipes from AGRU were used. The core pipe of the Sureline with protective layer is made of PE 100-RC and is covered with a PP protective layer. It is especially suitable for trenchless installation methods, because the core pipe is protected from scratches and cuts during the installation by the protective layer. Additionally, PE 100-RC offers an outstanding resistance against the slow crack growth.


Pipe bursting involves the old pipe bursting and being replaced by a new pipe.


For the installation of the new pipeline the pipe bursting (berstlining) technique was selected. During the process of pipe bursting the existing pipe gets burst and replaced with a new pipeline. Depending on the soil type, an enlargement of the cross-section of about 30 % is possible.

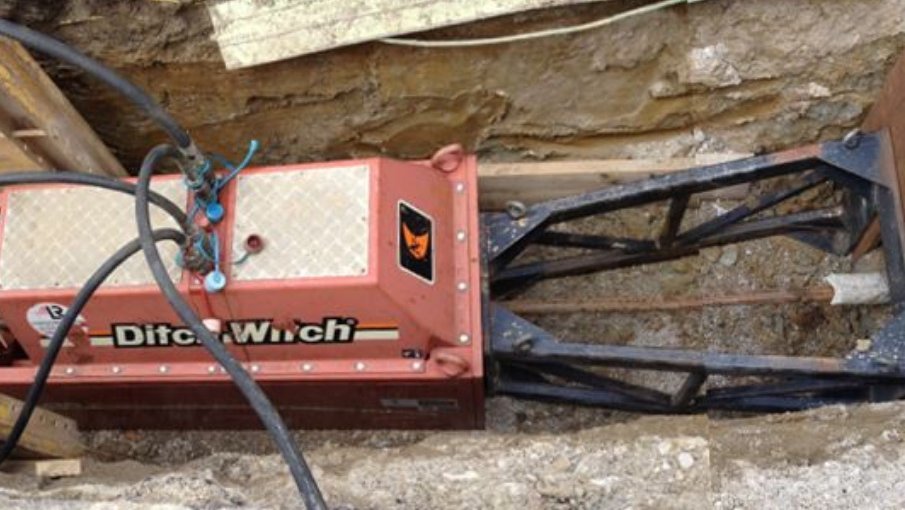

Before the installation, the single pipe sections are joined using the butt welding method. Afterwards a system of rods gets pulled through the existing pipeline and a bursting head with the attached new pipeline is connected to the rods. In the next step the rods are pulled back by a hydraulic power unit in the exit pit. During the process the old pipeline is cut (steel pipes) or burst (ceramic or asbestos cement pipes). For better gliding properties during the installation the new pipeline is coated with a lubricant.

By using this method a 100% tight and long-lasting pipeline is installed without any massive traffic disruption.

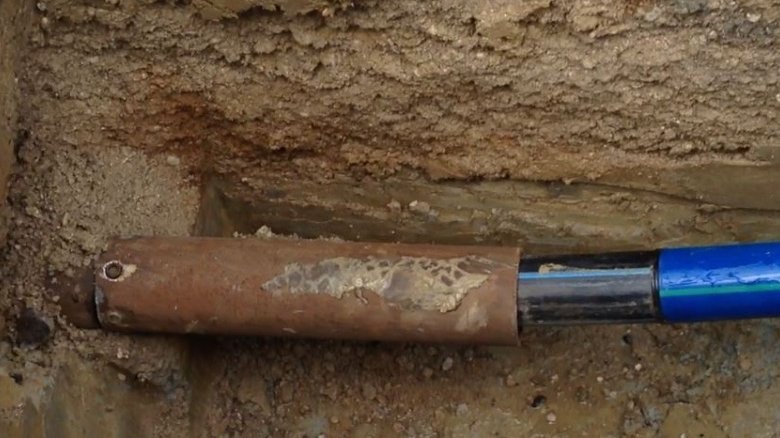

New line with attached bursting head. The pipe is covered with a lubricant for improved gliding properties. New line with attached bursting head. The pipe is covered with a lubricant for improved gliding properties.

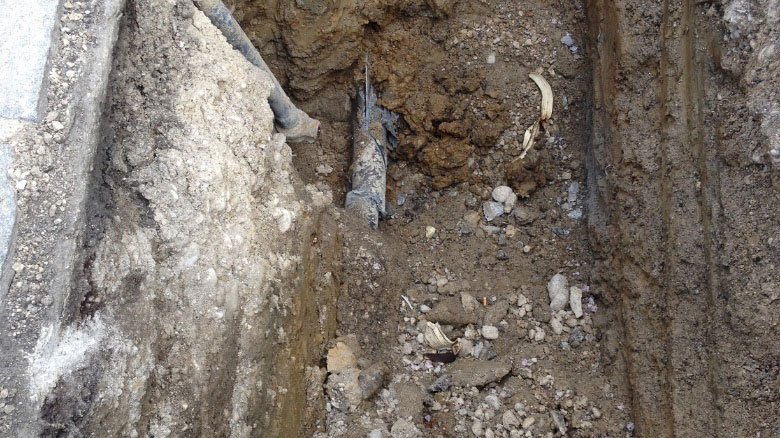

Single steps of a pipe bursting technique. Cutting the pipe Single steps of a pipe bursting technique. Cutting the pipe

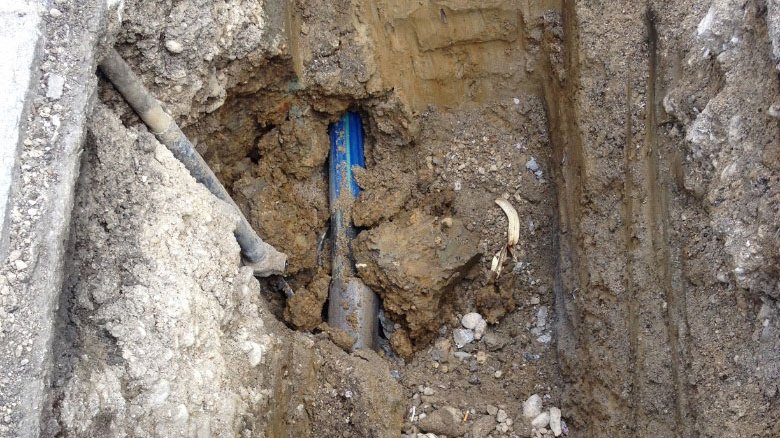

Bursting the pipe Bursting the pipe

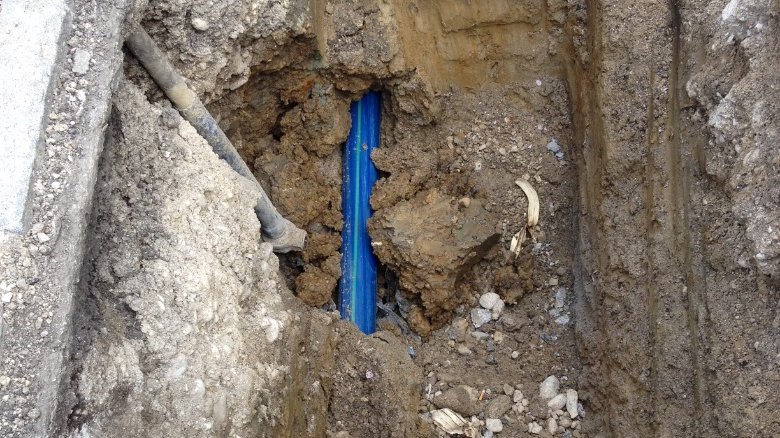

Pulling the new line Pulling the new line
