Evaporator for acid recovery

Project Date: 2017

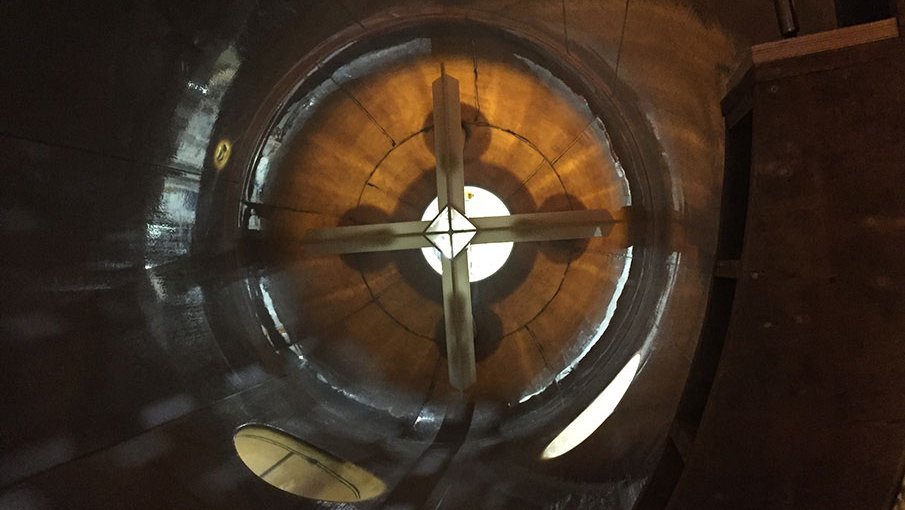

Material: PVDF for vortex breaker FEP GGS sheets for inner lining
Medium: Sulfuric acid (H₂SO₄), 35 %
Pressure: full vacuum
Temperature: 120 °C
Dimensions: Ø 2500 mm, height: 6500 mm

Sheets from PVDF and FEP

In many industrial applications (e.g. in metal pickling) acid solutions are being used. Thereby occurring impurities can decrease the effectiveness of the process. To purify the solutions they are directed to a recovery system, in which evaporator units are used.


The prevailing temperatures and chemical media in the process demand the highest material and processing quality.


The Finnish company PRP Plastic OY manufactures industrial equipment like FRP evaporators lined with thermoplastic sheets from AGRU. In this case three evaporator vessels have been shipped since the beginning of 2017. The occurring media and temperature call for highest material quality.
