Overview

PE/PVDF Staggered Welding

  • Double Containment Pipe 5m
  • extruded+assembled
  • Staggered+E-fusion-welding
  • HDPE/PVDF

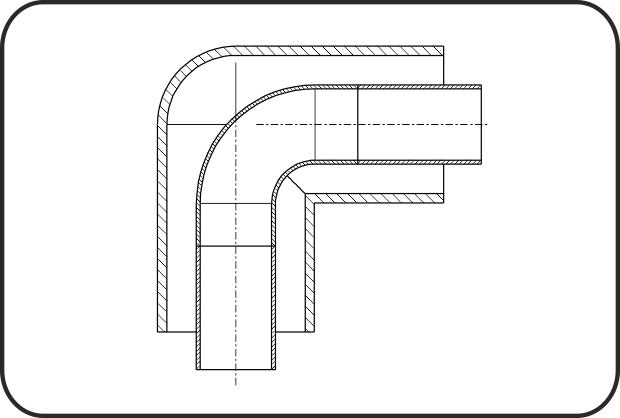

  • Bend 90°
  • injection moulded+assembled
  • Staggered+E-fusion-welding
  • HDPE/PVDF

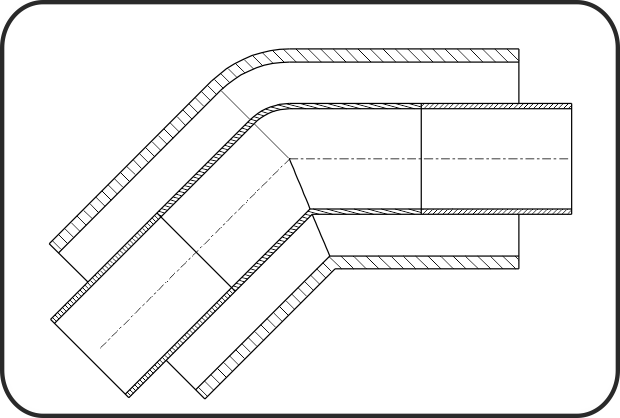

  • Bend 45°
  • injection moulded+assembled
  • Staggered+E-fusion-welding
  • HDPE/PVDF

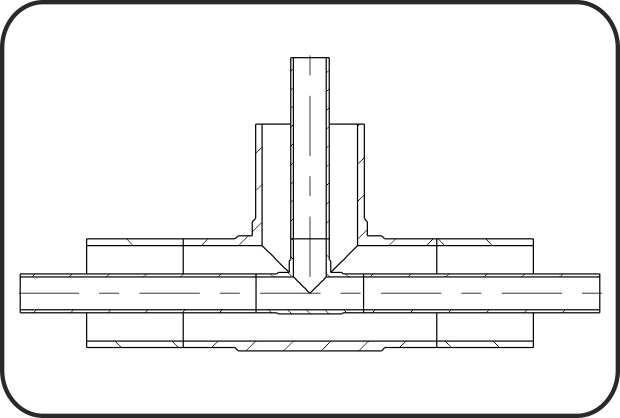

  • Tee
  • injection moulded+assembled
  • Staggered+E-fusion-welding
  • HDPE/PVDF

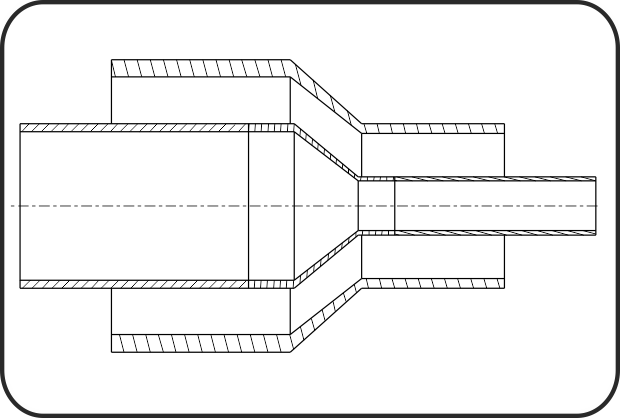

  • Reducer concentric
  • injection moulded+assembled
  • Staggered+E-fusion-welding
  • HDPE/PVDF

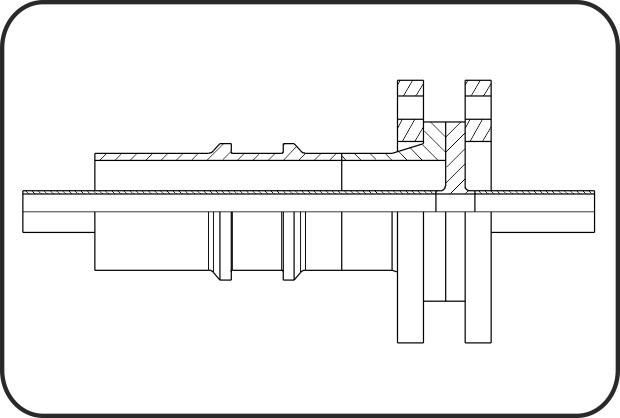

  • Dog Bone Type III-A, Collar
  • with connection to single-pipe
  • machined
  • Staggered+E-fusion-welding
  • HDPE/PVDF

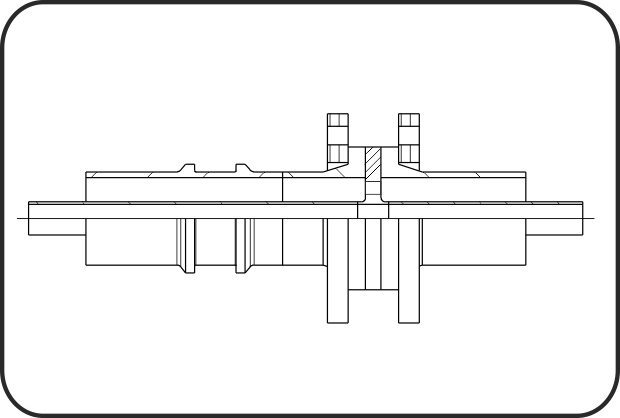

  • Dog Bone Type III, Collar
  • without cut out
  • machined
  • Staggered+E-fusion-welding
  • HDPE/PVDF

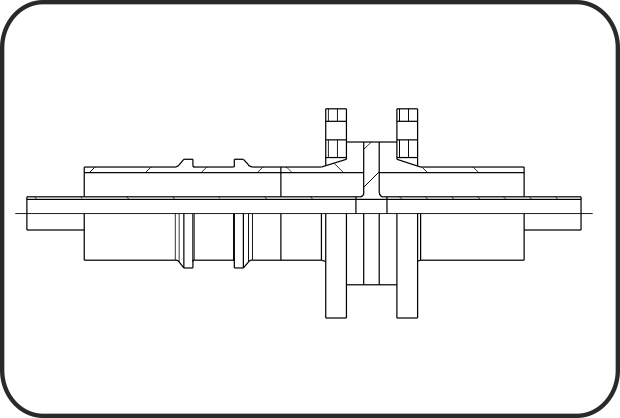

  • Dog Bone Type III, Collar
  • with cut out
  • machined
  • Staggered+E-fusion-welding
  • HDPE/PVDF
