PP/PP Simultaneous Welding

Code: 136
Code: 136

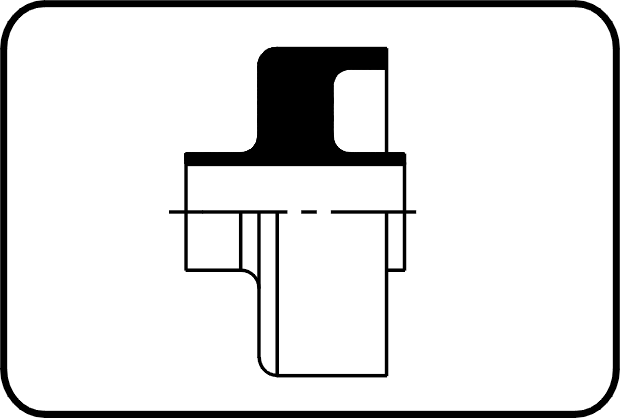

  • Dog Bone Type I-A
  • with connection to single-pipe
  • machined
  • Simultaneous-welding
  • PP/PP
Dimension Code Detail Unit Weight
160/90 80.136.1690.37 160/90 SDR33/17 piece 0.384
160/90 80.136.1690.31 160/90 SDR33/11 piece 0.421
280/160 80.136.2816.31 280/160 SDR33/11 piece 1.320
315/200 80.136.3120.31 315/200 SDR33/11 piece 1.620
355/250 80.136.3525.31 355/250 SDR33/11 piece 2.100
