Fittings with short Spigot

Code: 012
Component measures
Code: 012

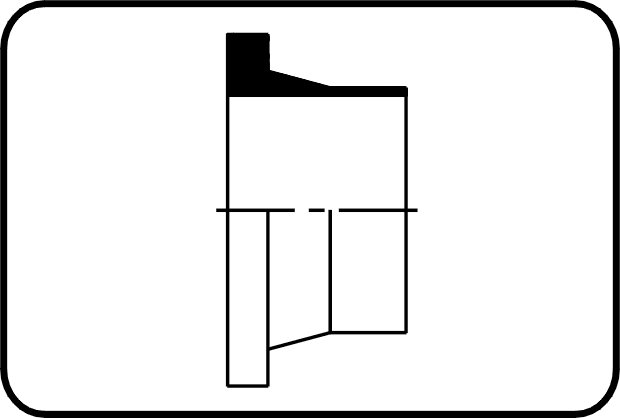

  • Stub Flange DIN
  • short spigot
  • flame retardant
  • injection moulded
  • Butt-welding
  • PPs grey
Dim. 90 - 160 SDR 11 Discontinued products. Backing Rings please see Accessories.
Dimension Code Detail Unit Weight
110 17.012.0110.33 110X3,4 SDR33 ISO S-16 piece 0.280
160 17.012.0160.33 160X4,9 SDR33 ISO S-16 piece 0.516
180 17.012.0180.33 180X5,5 SDR33 ISO S-16 piece 0.424
200 17.012.0200.33 200X6,2 SDR33 ISO S-16 piece 1.120
225 17.012.0225.33 225X6,9 SDR33 ISO S-16 piece 0.860
250 17.012.0250.33 250X7,7 SDR33 ISO S-16 piece 1.780
280 17.012.0280.33 280X8,6 SDR33 ISO S-16 piece 1.195
315 17.012.0315.33 315X9,7 SDR33 ISO S-16 piece 2.160
355 17.012.0355.33 355X10,9 SDR33 ISO S-16 piece 2.980
400 17.012.0400.33 400X12,3 SDR33 ISO S-16 piece 4.180
500 17.012.0500.33 500X15,3 SDR33 ISO S-16 piece 7.110
20 17.012.0020.11 20X1,9 SDR11 ISO S-5 piece 0.016
25 17.012.0025.11 25X2,3 SDR11 ISO S-5 piece 0.031
32 17.012.0032.11 32X2,9 SDR11 ISO S-5 piece 0.040
40 17.012.0040.11 40X3,7 SDR11 ISO S-5 piece 0.061
50 17.012.0050.11 50X4,6 SDR11 ISO S-5 piece 0.084
63 17.012.0063.11 63X5,8 SDR11 ISO S-5 piece 0.126
75 17.012.0075.11 75X6,8 SDR11 ISO S-5 piece 0.194
90 17.012.0090.11 90X8,2 SDR11 ISO S-5 piece 0.322
110 17.012.0110.11 110X10,0 SDR11 ISO S-5 piece 0.460
140 17.012.0140.11 140X12,7 SDR11 ISO S-5 piece 0.698
160 17.012.0160.11 160X14,6 SDR11 ISO S-5 piece 0.910
