Products AGRULINE Product Catalogue
Overview

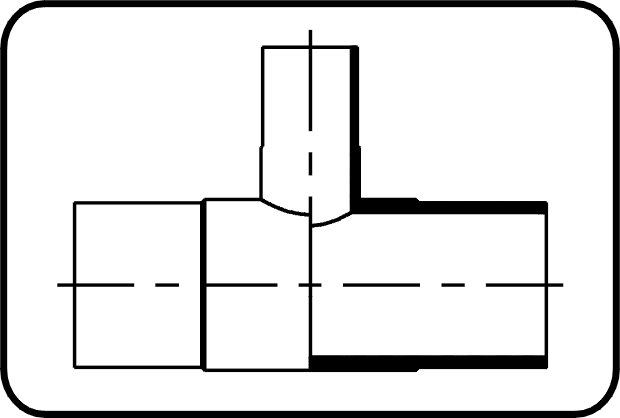

Elongated Fittings

Code: 065
Component measures
Code: 065
  • Tee reduced
  • long spigot
  • W/P-TW
  • injection moulded
  • Butt + E-fusion-welding
  • PE 100-RC black
Dimension Code Detail Unit Weight
63/50 70.065.6350.17 63/50 SDR17 PN10 piece 0.210
75/50 70.065.7550.17 75/50 SDR17 PN10 piece 0.400
75/63 70.065.7563.17 75/63 SDR17 PN10 piece 0.450
90/63 70.065.9063.17 90/63 SDR17 PN10 piece 0.577
90/75 70.065.9075.17 90/75 SDR17 PN10 piece 0.594
110/63 70.065.1163.17 110/63 SDR17 PN10 piece 0.970
110/75 70.065.1175.17 110/75 SDR17 PN10 piece 0.880
110/90 70.065.1190.17 110/90 SDR17 PN10 piece 0.985
125/63 70.065.1263.17 125/63 SDR17 PN10 piece 1.420
125/90 70.065.1290.17 125/90 SDR17 PN10 piece 1.360
125/110 70.065.1211.17 125/110 SDR17 PN10 piece 1.385
160/63 70.065.1663.17 160/63 SDR17 PN10 piece 1.950
160/75 70.065.1675.17 160/75 SDR17 PN10 piece 1.920
160/90 70.065.1690.17 160/90 SDR17 PN10 piece 2.000
160/110 70.065.1611.17 160/110 SDR17 PN10 piece 2.480
180/90 70.065.1890.17 180/90 SDR17 PN10 piece 3.200
180/160 70.065.1816.17 180/160 SDR17 PN10 piece 3.480
200/63 70.065.2063.17 200/63 SDR17 PN10 piece 5.220
200/90 70.065.2090.17 200/90 SDR17 PN10 piece 5.220
200/110 70.065.2011.17 200/110 SDR17 PN10 piece 5.360
200/125 70.065.2012.17 200/125 SDR17 PN10 piece 5.400
200/160 70.065.2016.17 200/160 SDR17 PN10 piece 6.440
225/75 70.065.2275.17 225/75 SDR17 PN10 piece 4.980
225/90 70.065.2290.17 225/90 SDR17 PN10 piece 5.115
225/110 70.065.2211.17 225/110 SDR17 PN10 piece 5.000
225/160 70.065.2216.17 225/160 SDR17 PN10 piece 6.240
225/180 70.065.2218.17 225/180 SDR17 PN10 piece 8.100
250/110 70.065.2511.17 250/110 SDR17 PN10 piece 9.800
250/160 70.065.2516.17 250/160 SDR17 PN10 piece 10.460
250/200 70.065.2520.17 250/200 SDR17 PN10 piece 11.060
315/90 70.065.3190.17 315/90 SDR17 PN10 piece 11.800
315/110 70.065.3111.17 315/110 SDR17 PN10 piece 11.760
315/160 70.065.3116.17 315/160 SDR17 PN10 piece 12.800
315/200 70.065.3120.17 315/200 SDR17 PN10 piece 15.930
315/225 70.065.3122.17 315/225 SDR17 PN10 piece 15.740
315/250 70.065.3125.17 315/250 SDR17 PN10 piece 16.600
355/160 70.065.3516.17 355/160 SDR17 PN10 piece 27.380
355/225 70.065.3522.17 355/225 SDR17 PN10 piece 27.760
355/250 70.065.3525.17 355/250 SDR17 PN10 piece 28.180
400/110 70.065.4011.17 400/110 SDR17 PN10 piece 37.300
400/160 70.065.4016.17 400/160 SDR17 PN10 piece 37.400
400/200 70.065.4020.17 400/200 SDR17 PN10 piece 37.440
400/225 70.065.4022.17 400/225 SDR17 PN10 piece 37.780
400/250 70.065.4025.17 400/250 SDR17 PN10 piece 38.020
400/315 70.065.4031.17 400/315 SDR17 PN10 piece 39.400
63/32 70.065.6332.11 63/32 SDR11 PN16 piece 0.300
63/50 70.065.6350.11 63/50 SDR11 PN16 piece 0.310
75/32 70.065.7532.11 75/32 SDR11 PN16 piece 0.500
75/50 70.065.7550.11 75/50 SDR11 PN16 piece 0.541
75/63 70.065.7563.11 75/63 SDR11 PN16 piece 0.552
90/63 70.065.9063.11 90/63 SDR11 PN16 piece 0.760
90/75 70.065.9075.11 90/75 SDR11 PN16 piece 0.821
110/63 70.065.1163.11 110/63 SDR11 PN16 piece 1.240
110/75 70.065.1175.11 110/75 SDR11 PN16 piece 1.220
110/90 70.065.1190.11 110/90 SDR11 PN16 piece 1.270
125/75 70.065.1275.11 125/75 SDR11 PN16 piece 1.820
125/90 70.065.1290.11 125/90 SDR11 PN16 piece 1.700
125/110 70.065.1211.11 125/110 SDR11 PN16 piece 1.920
160/63 70.065.1663.11 160/63 SDR11 PN16 piece 2.620
160/75 70.065.1675.11 160/75 SDR11 PN16 piece 2.680
160/90 70.065.1690.11 160/90 SDR11 PN16 piece 2.640
160/110 70.065.1611.11 160/110 SDR11 PN16 piece 3.260
180/90 70.065.1890.11 180/90 SDR11 PN16 piece 4.420
180/110 70.065.1811.11 180/110 SDR11 PN16 piece 4.720
180/160 70.065.1816.11 180/160 SDR11 PN16 piece 4.700
200/63 70.065.2063.11 200/63 SDR11 PN16 piece 7.140
200/90 70.065.2090.11 200/90 SDR11 PN16 piece 7.160
200/110 70.065.2011.11 200/110 SDR11 PN16 piece 7.350
200/125 70.065.2012.11 200/125 SDR11 PN16 piece 7.340
200/160 70.065.2016.11 200/160 SDR11 PN16 piece 8.600
225/75 70.065.2275.11 225/75 SDR11 PN16 piece 6.820
225/90 70.065.2290.11 225/90 SDR11 PN16 piece 6.890
225/110 70.065.2211.11 225/110 SDR11 PN16 piece 6.900
225/160 70.065.2216.11 225/160 SDR11 PN16 piece 8.460
225/180 70.065.2218.11 225/180 SDR11 PN16 piece 10.040
250/50 70.065.2550.11 250/50 SDR11 PN16 piece 13.100
250/75 70.065.2575.11 250/75 SDR11 PN16 piece 13.120
250/110 70.065.2511.11 250/110 SDR11 PN16 piece 12.960
250/160 70.065.2516.11 250/160 SDR11 PN16 piece 13.740
250/180 70.065.2518.11 250/180 SDR11 PN16 piece 13.400
250/200 70.065.2520.11 250/200 SDR11 PN16 piece 14.540
315/90 70.065.3190.11 315/90 SDR11 PN16 piece 16.020
315/110 70.065.3111.11 315/110 SDR11 PN16 piece 15.900
315/125 70.065.3112.11 315/125 SDR11 PN16 piece 17.315
315/160 70.065.3116.11 315/160 SDR11 PN16 piece 17.520
315/180 70.065.3118.11 315/180 SDR11 PN16 piece 20.800
315/200 70.065.3120.11 315/200 SDR11 PN16 piece 21.000
315/225 70.065.3122.11 315/225 SDR11 PN16 piece 20.000
315/250 70.065.3125.11 315/250 SDR11 PN16 piece 22.840
355/160 70.065.3516.11 355/160 SDR11 PN16 piece 35.920
355/225 70.065.3522.11 355/225 SDR11 PN16 piece 39.100
355/250 70.065.3525.11 355/250 SDR11 PN16 piece 37.440
400/110 70.065.4011.11 400/110 SDR11 PN16 piece 48.820
400/160 70.065.4016.11 400/160 SDR11 PN16 piece 49.020
400/200 70.065.4020.11 400/200 SDR11 PN16 piece 49.400
400/225 70.065.4022.11 400/225 SDR11 PN16 piece 50.200
400/250 70.065.4025.11 400/250 SDR11 PN16 piece 50.480
400/315 70.065.4031.11 400/315 SDR11 PN16 piece 52.560
