Sweep Bends

Code: 395
Component measures
Code: 395

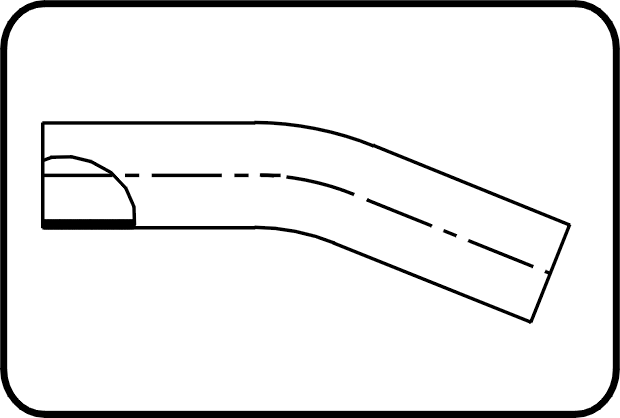

  • Sweep Bend 22°
  • radius 1.5 x OD
  • formed out of pipe
  • Butt + E-fusion-welding
  • PE 100-RC black
Dimension Code Detail Unit Weight
90 70.395.0090.17 90 SDR17 ISO S-8 10 bar piece 0.980
110 70.395.0110.17 110 SDR17 ISO S-8 10 bar piece 1.430
125 70.395.0125.17 125 SDR17 ISO S-8 10 bar piece 2.070
140 70.395.0140.17 140 SDR17 ISO S-8 10 bar piece 2.700
160 70.395.0160.17 160 SDR17 ISO S-8 10 bar piece 3.750
180 70.395.0180.17 180 SDR17 ISO S-8 10 bar piece 5.080
200 70.395.0200.17 200 SDR17 ISO S-8 10 bar piece 6.700
225 70.395.0225.17 225 SDR17 ISO S-8 10 bar piece 9.110
250 70.395.0250.17 250 SDR17 ISO S-8 10 bar piece 11.990
280 70.395.0280.17 280 SDR17 ISO S-8 10 bar piece 15.200
315 70.395.0315.17 315 SDR17 ISO S-8 10 bar piece 24.600
355 70.395.0355.17 355 SDR17 ISO S-8 10 bar piece 33.600
400 70.395.0400.17 400 SDR17 ISO S-8 10 bar piece 48.100
450 70.395.0450.17 450 SDR17 ISO S-8 10 bar piece 64.400
500 70.395.0500.17 500 SDR17 ISO S-8 10 bar piece 88.400
560 70.395.0560.17 560 SDR17 ISO S-8 10 bar piece 116.000
630 70.395.0630.17 630 SDR17 ISO S-8 10 bar piece 176.000
90 70.395.0090.11 90 SDR11 ISO S-5 16 bar piece 1.420
110 70.395.0110.11 110 SDR11 ISO S-5 16 bar piece 2.070
125 70.395.0125.11 125 SDR11 ISO S-5 16 bar piece 3.060
140 70.395.0140.11 140 SDR11 ISO S-5 16 bar piece 3.960
160 70.395.0160.11 160 SDR11 ISO S-5 16 bar piece 5.660
180 70.395.0180.11 180 SDR11 ISO S-5 16 bar piece 7.490
200 70.395.0200.11 200 SDR11 ISO S-5 16 bar piece 9.880
225 70.395.0225.11 225 SDR11 ISO S-5 16 bar piece 13.360
250 70.395.0250.11 250 SDR11 ISO S-5 16 bar piece 17.660
280 70.395.0280.11 280 SDR11 ISO S-5 16 bar piece 22.200
315 70.395.0315.11 315 SDR11 ISO S-5 16 bar piece 36.300
355 70.395.0355.11 355 SDR11 ISO S-5 16 bar piece 46.000
400 70.395.0400.11 400 SDR11 ISO S-5 16 bar piece 70.900
450 70.395.0450.11 450 SDR11 ISO S-5 16 bar piece 95.000
500 70.395.0500.11 500 SDR11 ISO S-5 16 bar piece 130.000
560 70.395.0560.11 560 SDR11 ISO S-5 16 bar piece 172.000
630 70.395.0630.11 630 SDR11 ISO S-5 16 bar piece 176.000
