AGRUCAD Digital Libraries

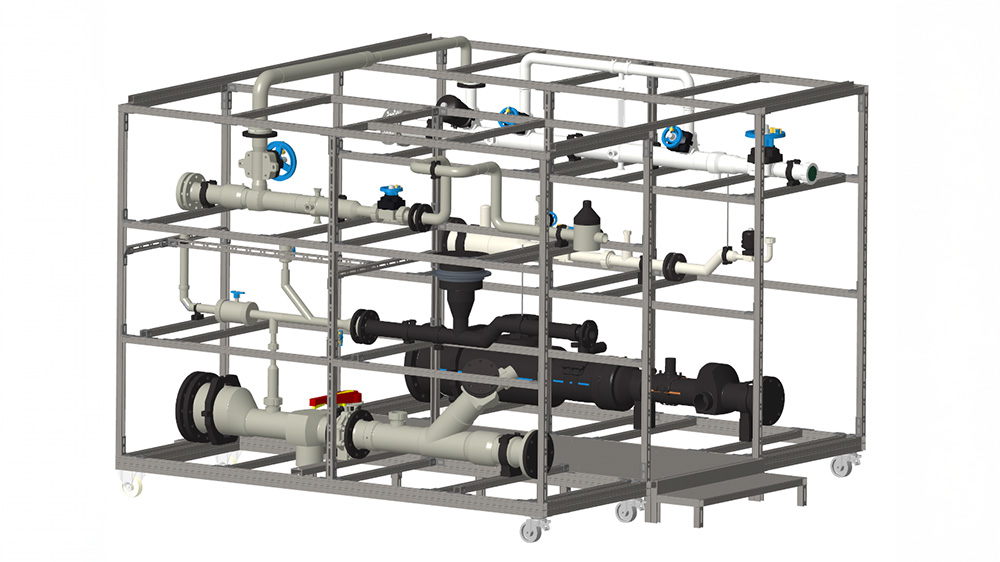

Smart piping design from the very beginning

Whether for drinking water, chemical processing or cleanroom applications – AGRUCAD Digital Libraries ensure seamless integration of design, tendering and documentation. All content is centrally consolidated: digital component catalogues, high-precision Revit families (LOD 500), and GAEB-compliant tender texts ready for immediate use and all this in the widest variety of materials - from PE 100-RC and PP to high-purity media materials such as PVDF and ECTFE. You receive validated 3D models, complete metadata and tender specifications – enabling efficient, error-free and professionally coordinated project execution.

Your benefits at a glance

With AGRU, you benefit from centralised access to digital models and technical data for around 10,000 products – including pipes, fittings, instrumentation, control components and valves. This reduces coordination effort and ensures higher planning precision.

  • Time savings in planning & tendering
  • Error prevention thanks to verified manufacturer data
  • Improved planning quality thanks to the highest level of detail (LOD 500) for BIM models
  • Fast and efficient system expansion and optimisation thanks to complete data models

Whether plant engineering, infrastructure or building services engineering - suitable components and data are available for every area of application:

  • AGRULINE - PE 100-RC, PE 100-RC FM 215 psi, PE 100-RC FM 250 psi
  • AGRUCHEM - PP, PE 100-RC, PVDF, ECTFE, double containment piping system
  • PURAD - PVDF UHP, PP-Pure, Polypure
  • Rings, Accessories and Seal Clean Gaskets

Technical highlights

  • AGRU BIM & Plant Design Library
    Revit routing (from version 2020) and AutoCAD Plant 3D support automatic insertion of fittings with defined material and SDR, bill of materials generation, tagging logic and quality checks. These tools enable precise planning, accurate documentation and seamless data transfer – ensuring consistent workflows throughout the design process.

    Request AGRU BIM & Plant Design Library


  • AGRU MultiCAD Library
    The AGRU MultiCAD Library offers thousands of validated 2D and 3D models in formats including Allplan, AVEVA, Bentley AECOsim, Inventor, Solid Edge, SolidWorks and Trimble SketchUp. This allows flexible integration of AGRU components into a wide range of CAD environments.

    AGRU MultiCAD Library

AGRU BIM & Plant Design Library:
Drawing with intelligent routing function

1. Material selection
Select the right material - from PE to the high-performance material ECTFE, all materials that AGRU has in its range are available.

2. SDR selection
Specify the required SDR or pressure rating for the project.

3. Drawing
Start routing - the library automatically places suitable AGRU pipes and fittings.

4. Dimensioning
Adjust the dimensions if necessary - fittings and reductions are automatically adjusted or added.

5. Adding components
Add additional components such as valves or end caps directly in the design process.

6. Bill Of Materials
All components of your planned system are collected in the Bill Of Materials (BOM). Export your BOM so that you can then send the order to AGRU.



Autodesk Revit & Autodesk Plant 3D

Autodesk Revit
Autodesk Plant 3D

Tender texts in GAEB format

AGRU also provides standardised tender texts in GAEB format for AGRULINE, AGRUCHEM and PURAD. These can be seamlessly imported into AVA software – ensuring accurate specifications and a transparent procurement process.
