Overview

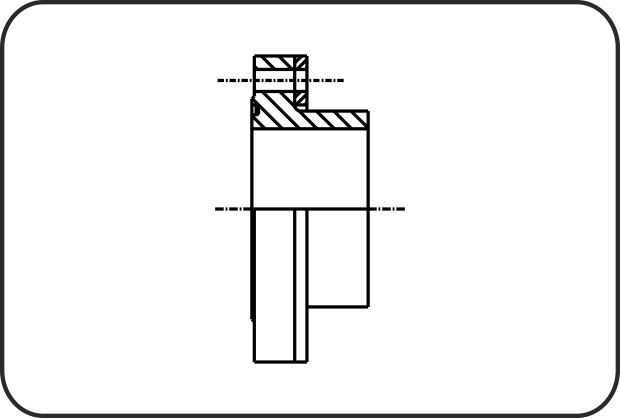

- Special Flange DIN short
- hot-dip galvan. backing ring
- and EPDM O-ring
- machined/drilled PN16
- Butt-welding
- PE 100-RC black
| Dimension | Code | Detail | Unit | Weight |
|---|---|---|---|---|
| 250/DN200 | 70.362.0250.11 | 250X22,7 SDR11 / DN200 | piece | 7.750 |
| 315/DN250 | 70.362.0315.11 | 315X28,6 SDR11 / DN250 | piece | 12.000 |
| 355/DN300 | 70.362.0355.11 | 355X32,2 SDR11 / DN300 | piece | 20.200 |
| 400/DN350 | 70.362.0400.11 | 400X36,3 SDR11 / DN350 | piece | 26.700 |
| 450/DN400 | 70.362.0450.11 | 450X40,9 SDR11 / DN400 | piece | 37.700 |
| 560/DN500 | 70.362.0560.11 | 560X50,8 SDR11 / DN500 | piece | 44.700 |
